Using Smartpoint Cloud

Smartpoint Cloud can support up to 9 windows, which can be added, deleted, moved, and resized.

You can also switch between graphical displays and terminal displays using the Toggle view () icon. Refer to Toggle views below.

Modify your workspace

You can add, resize, close, and move windows. When the Toggle view () icon is active, you can switch between terminal and graphical displays.

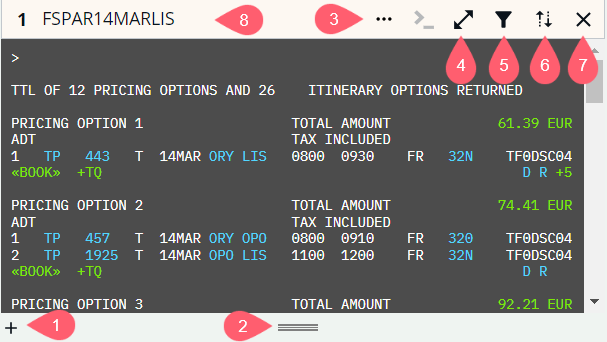

  1. Select the + at the bottom left of each window to add a new window to the column (maximum of 3 windows per column). Select the + to the bottom right of the last column to add a new column with a new window (maximum of 3 columns).

  2. Click and drag the horizontal line to resize any window.

  3. Select the Toggle view () icon when active to toggle between the terminal and graphic display.

  4. Select the windows options () icon to change to native mode or to change this window's color theme.

  5. Select the X in the upper right corner of a window to close it.

  6. Click and drag the window header to move the window to another location. Double-click the window header to maximize or minimize a window.

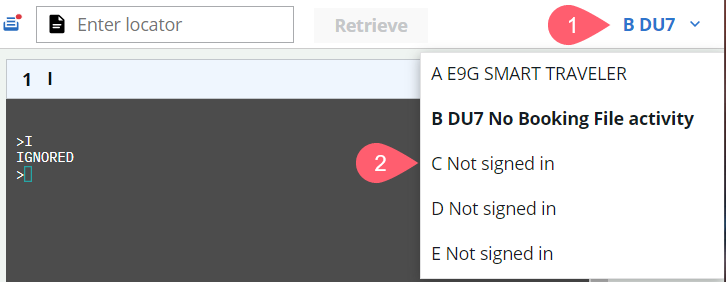

  7. Select to change your GTID.

The layout you are using when you log out is remembered and displayed next time you log in.

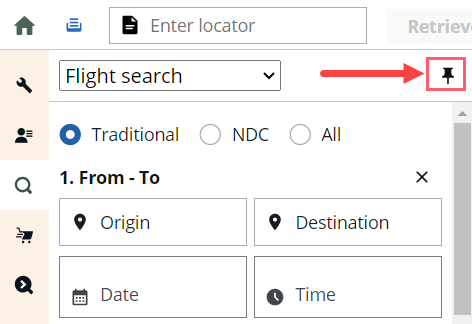

Select the pin to pin and unpin the sidebar (select thumbnail images to expand and select again to minimize).

When working within windows,

  • All input entries display at the top of each window.

  • An interstitial displays when waiting for a response (this replaces the red BUSY icon in Smartpoint).

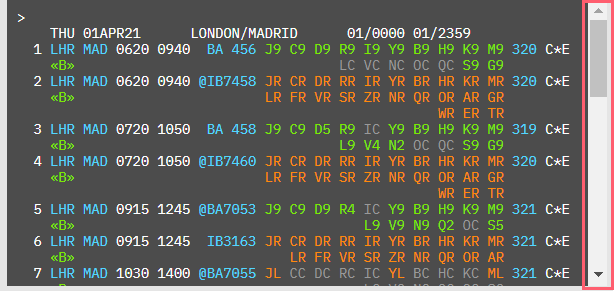

  • An inner scroll bar appears when the response is longer than the size of the window.

  • The cursor position in the non-focused terminal window displays as an outline (). The cursor position in the focused terminal window displays as filled ().

Toggle views

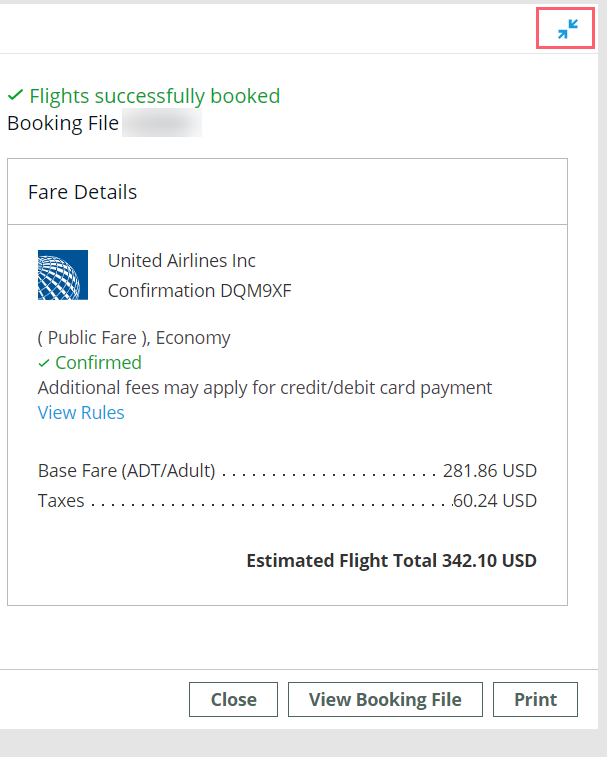

When in a graphical view, click the Toggle view () icon in the upper right corner to switch from the graphical view to the terminal view.

The terminal window displays the cryptic entry in the header and the results listed in the window. To return to the graphical view, click the Toggle view () icon in the window header.
