Viewing a booking file in graphical view
When the booking is displayed in either terminal or graphical, there is a booking view at the top which displays the locator, number of passengers and number of flights booked.
-
Click on Travelers to show the traveler's name and PTC.
-

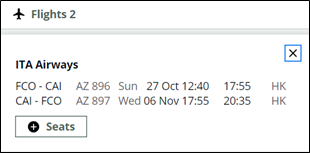

Click on Flights to display carrier, route, flight number, date, time, and status.
-

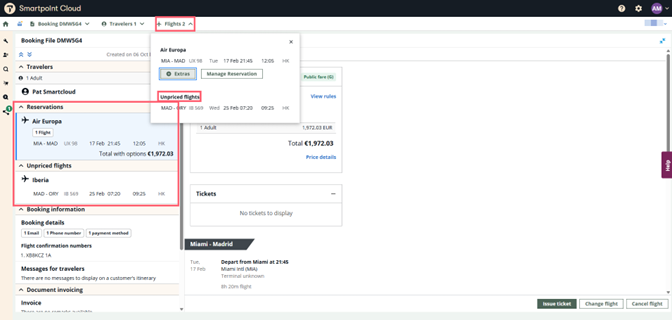

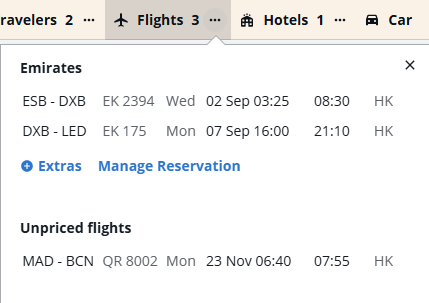

The segments are listed in the Reservations section. Those that were not quoted are shown under Unpriced flights.

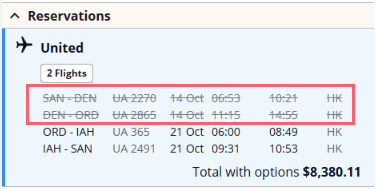

If the retrieved booking contains segments from past dates, they will be visible and crossed out for easy identification.
-
-
Click on Booking locator to choose to ignore the booking.
Press theToggle view

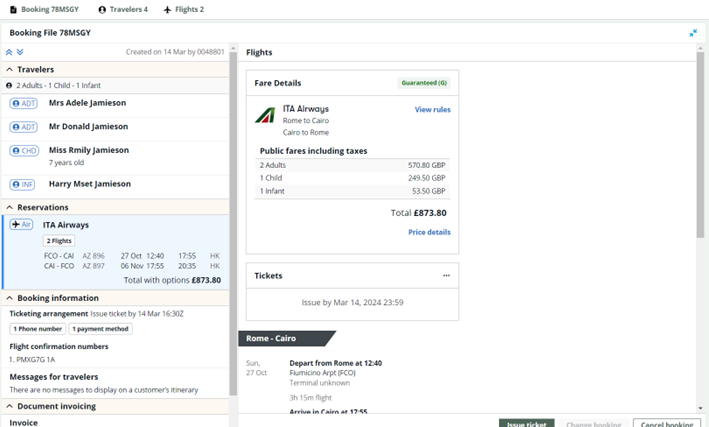

icon active in the window header, to open the booking file in graphical view.

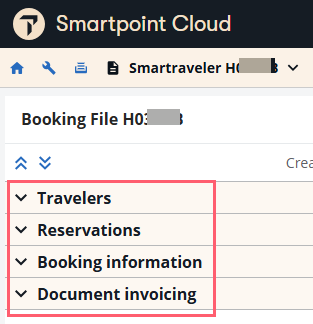

The sections/cards on the left include Travelers, Reservations, Booking Information and Document invoicing. These can be expanded/collapsed as required and selected (in blue) to display more information on the righthand side of the screen.
