Printer status
HELP TINS or H/HMLD
MyTravelport search: Travelport+ Formats Guide for Document Production
MyTravelport search: Printer setup and linkage
Before using Travelport+ to issue any documents, check your printer status. From your workstation, check your printer status and ticket and invoice (TINS) tables to verify correct document numbering (TINS is the Travelport+ Ticket/Invoice Numbering System).
To check printer linkage and status from your workstation, enter: HMLD

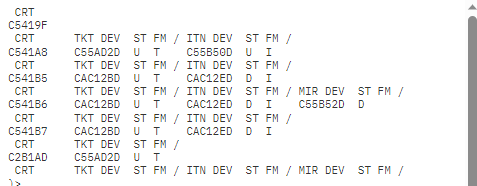

The following linkage screen appears:
The following table describes the linkage screen components:
|
Component |
Description |
Example |
|---|---|---|
|
CRT |
Workstation address |
86BAC0 |
|
TKT DEV |
Ticket device address |
CAC12B |
|
ITN DEV |
Itinerary/invoice printer address |
C541AB |
|
MIR DEV |
Accounting interface address |
CAC132 |
|
D (following each printer address) |
Device |
|
Note: You may also be linked to a hardcopy printer (PRT DEV) if available.
|
Component |
Description |
Example |
|---|---|---|
|
ST |
Printer/interface status |
U (Up) D (Down) |
|
FM |
Type of form in device/printer |
T (Ticket) I Itinerary/invoice) |
If you are not linked to a device and do not know the GTID, check the GTIDs by viewing the linkage for your Pseudo City Code by entering: HMLDPCC
Example: HMLD7IXX
To link to the appropriate device, enter HMLM followed by the device number, then DI. For example, to link to the itinerary/electronic ticket support document printer GTID C066F7, enter: HMLMC066F7DI
If the link is showing with a D for Down under the ST (status) column, set the status to UP by entering: HMOMC066F7-U
